Carlisle Spray Foam Insulation for Architects and Designers
When planning a project, you need to know more than the technical information about the products you’re specifying. You need to know that the products you recommend and ultimately specify are thoroughly tested for high performance, designed to meet today’s demanding building codes and backed by expert service.
Proudly Part of Carlisle weatherproofing Technologies
Carlisle Spray Foam Insulation (CSFI) is part of Carlisle Weatherproofing Technologies (CWT) and the broader family of Carlisle Companies’ brands. As the premier specialty polyurethane supplier in the North American marketplace, together, we deliver the high-quality, innovative polymer-based products to offer a building envelope application and an end-to-end solution that are truly industry-leading.
External Walls
One of the leading causes of air loss and excessive moisture in commercial structures is poor exterior wall insulation. Traditional foam board, cellulose, or other fiberglass solutions can cause reductions in energy efficiency and restrict building design. Carlisle Spray Foam Insulation is an easily applied, long-lasting alternative that is compatible with most materials and can be used for any architectural build-out.
Air Barrier
Did you know that more stringent air barrier requirements are being incorporated into the building codes of many states? Continuous air barriers help stop uncontrolled airflow and contribute to greater energy efficiency and moisture control. Carlisle Spray Foam Insulation is an excellent choice to help meet those demanding requirements.
Roofing
In conjunction with CCM, Carlisle Spray Foam Insulation works together with polyurethane coatings in a commercial or industrial setting to create an energy-efficient roof so durable that it will likely outlive the building itself. Specially formulated Closed Cell spray foam insulation adds structural support and creates the tightest seal possible, filling even the tiniest gaps with a durable solid.
Superior Insulation Choice
Compared to traditional insulation options like extruded polystyrene for exterior commercial walls and fiberglass for wall and ceiling cavities, SealTite PRO spray foam insulation products can be used in both applications to achieve superior performance. Its benefits include:
Stronger Structural Integrity
Lower Heating and Cooling Costs
Improved Indoor Air Quality
Reduced Noise
Architect and Specifier Resources
Carlisle Spray Foam Insulation maintains a comprehensive online binder that includes all the information you need in a single location. This online tool contains:
- Product information
- Technical data sheets
- CSI 3-part specifications
- Details (CAD, PDF)
- Certifications
- Health and Safety information
- LEED summary
- UL designs
- ABAA evaluated products and specifications
Specifications and Details
Commercial
CSI Format Specs and comprehensive package of details for using SPF products in commercial applications.
Residential
CSI Format Specs and comprehensive package of details for using SPF products in residential applications.
ABAA Specs
Form Spec in Word Document that can be edited in order to adhere to a particular Closed Cell SPF product.
Find Carlisle Spray Foam Insulation on Masterspec®
Find all Carlisle Spray Foam Insulation product specifications and technical data on MasterSpec®. Click below to register with MasterSpec® and start creating easy documentation for all types of projects today.
Find Carlisle Spray Foam Insulation on ARCAT®
Free online resource for specifications and details. Includes an easy to use SpecWizard which generates a specification from user input for a project specific document. No registration is required.
Find Carlisle Spray Foam Insulation on BSD SpecLink
Registered users can utilize Building Information Modeling-compatible specifications, linked to a BIM Project Model. This allows interactions between the building model and specs, allowing users to select products for a project and link a project manual.
UL Approved Fire-Rated Designs
| Design | Fire Rating | ||||||
|---|---|---|---|---|---|---|---|
| 1-HR | 2-HR | 3-HR | |||||
| Wood-Framed Wall |
|
U301 | |||||
| Steel-Framed Wall | W421
U465 |
U411 U419 |
V495 | ||||
| Wood/Steel-Framed Wall | V313 | ||||||
| Floor/Ceiling Design |
|
||||||
| Roof/Ceiling Wood-Framed |
|
||||||
Design Flexibility – NFPA 285 Compliant Assembly Guides
Carlisle Spray Foam Insulation gives designers more wall design options than any other spray foam manufacturer by providing an extensive portfolio of NFPA 285 compliant wall assemblies. Partnering with Carlisle’s Petersen Aluminum Corporation, SealTite PRO SPF products are the only spray foam products that passed the requirements of NFPA 285 standard with PAC-Clad ® Aluminum Cladding. CSFI maintains up-to-date, comprehensive wall assembly guides to ensure your design is NFPA 285 compliant.
Exterior and Cavity Wall Assembly GuideCavity Insulation Wall Assembly Guide
High Performance Spray Foam Insulation
Carlisle Spray Foam Insulation gives designers more wall design options than any other spray foam manufacturer by providing an extensive portfolio of NFPA 285 compliant wall assemblies. Partnering with Carlisle’s Petersen Aluminum Corporation, SealTite PRO SPF products are the only spray foam products that passed the requirements of NFPA 285 standard with PAC-Clad ® Aluminum Cladding. CSFI maintains up-to-date, comprehensive wall assembly guides to ensure your design is NFPA 285 compliant.
| LIGHT-DENSITY OPEN CELL | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEALTITE PRO OPEN CELL |
SEALTITE PRO NO TRIM 21 |
||||||||||||||||||||
|
|
||||||||||||||||||||
| PERFORMANCE FEATURES | |||||||||||||||||||||
|
|||||||||||||||||||||
| USES | |||||||||||||||||||||
|
|||||||||||||||||||||
| MEDIUM-DENSITY CLOSED CELL | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEALTITE PRO CLOSED CELL |
SEALTITE ONE (CANADA) |
||||||||||||||||||||
|
|
||||||||||||||||||||
| PERFORMANCE FEATURES | |||||||||||||||||||||
|
|||||||||||||||||||||
| USES | |||||||||||||||||||||
|
|||||||||||||||||||||
Enhanced Wall Assembly
The multi-functional performance of closed-cell spray foam insulation provides a complete environmental separator in one product for a cost-effective, high-performance wall system. Closed-cell spray foam insulation provides four levels of protection – thermal, moisture, air, and vapor.

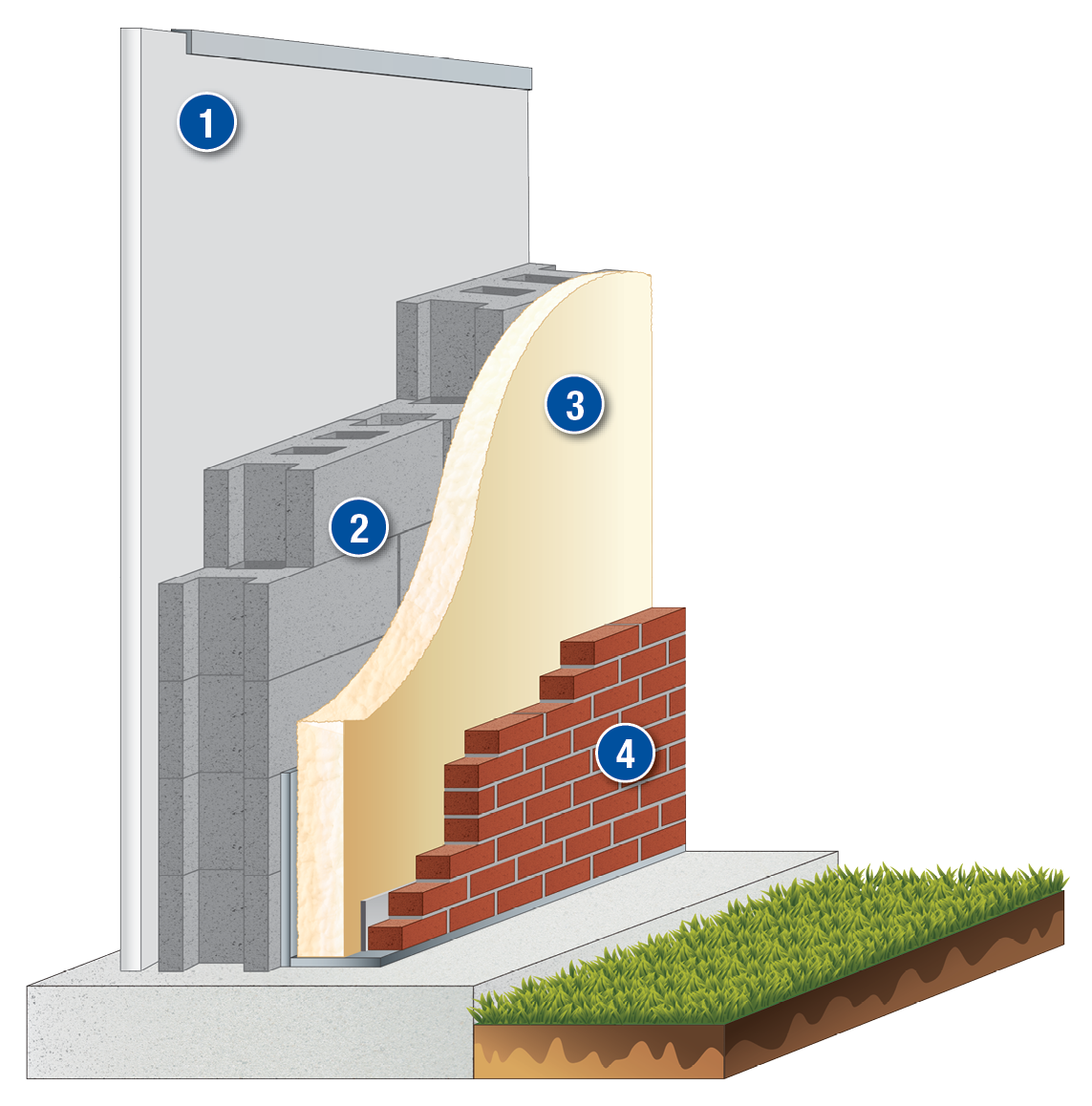

Closed Cell Spray Foam Insulation For Masonry Walls
| CLOSED CELL SPRAY FOAM INSULATION FOR MASONRY WALLS |
|
|---|---|
| 1Gypsum Wallboard | $1.74 |
| 28″ CMU | $10.25 |
| 33″ Closed Cell Spray Foam Insulation (R-21) | $2.89 |
| 4Brick Veneer | $24.00 |
| TOTAL PER SQUARE FOOT | $38.00 |

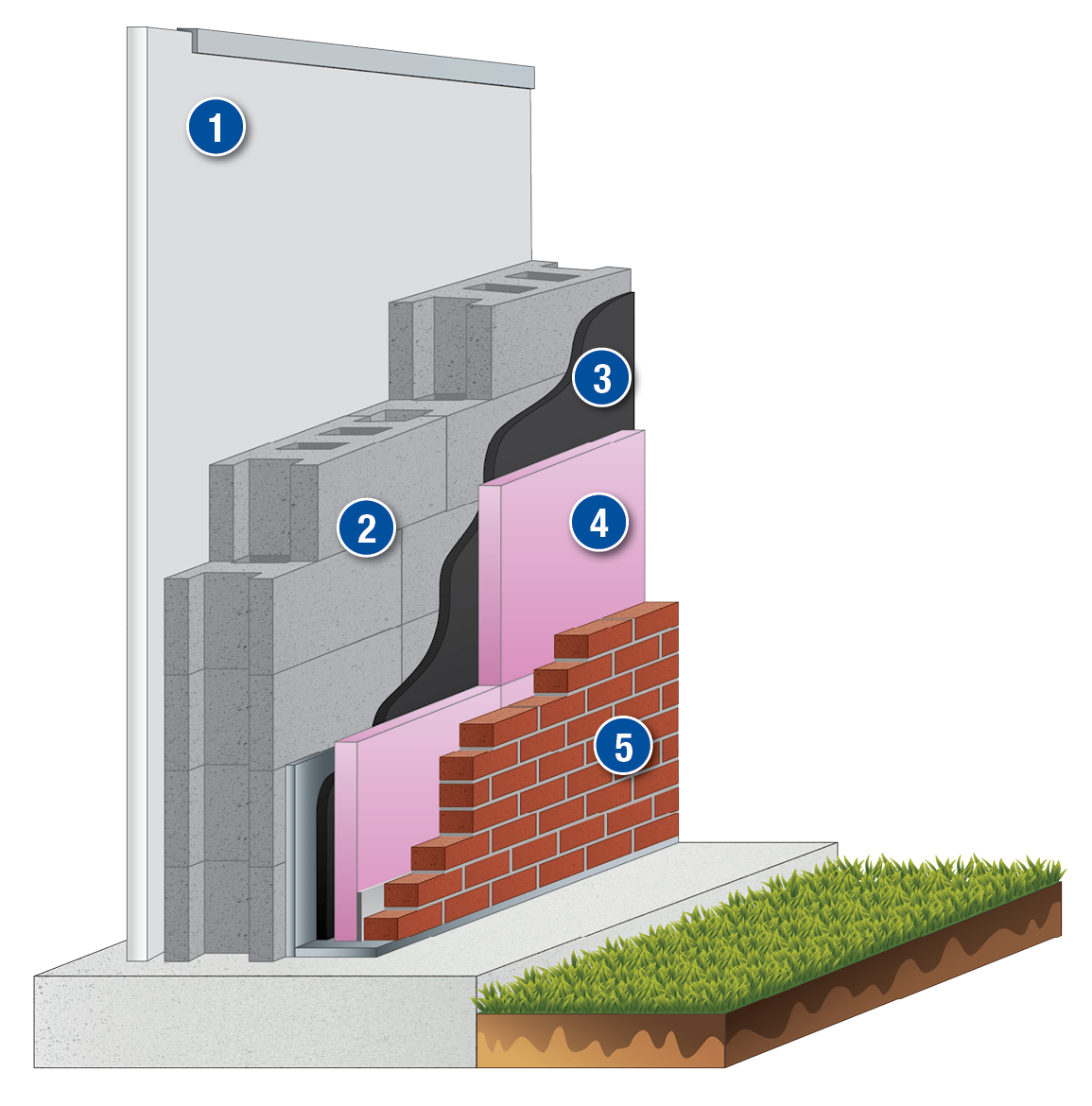

Rigid XPS Foam Board For Masonry Walls
| RIGID XPS FOAM BOARD FOR MASONRY WALLS |
|
|---|---|
| 1Gypsum Wallboard | $1.74 |
| 28″ CMU | $10.25 |
| 3Polyurethane and Rubberized Asphalt Sheet Barrier | $2.31 |
| 43″ Extruded Polystyrene Insulation (XPS) | $2.72 |
| 5Brick Veneer | $24.00 |
| TOTAL PER SQUARE FOOT | $41.02 |

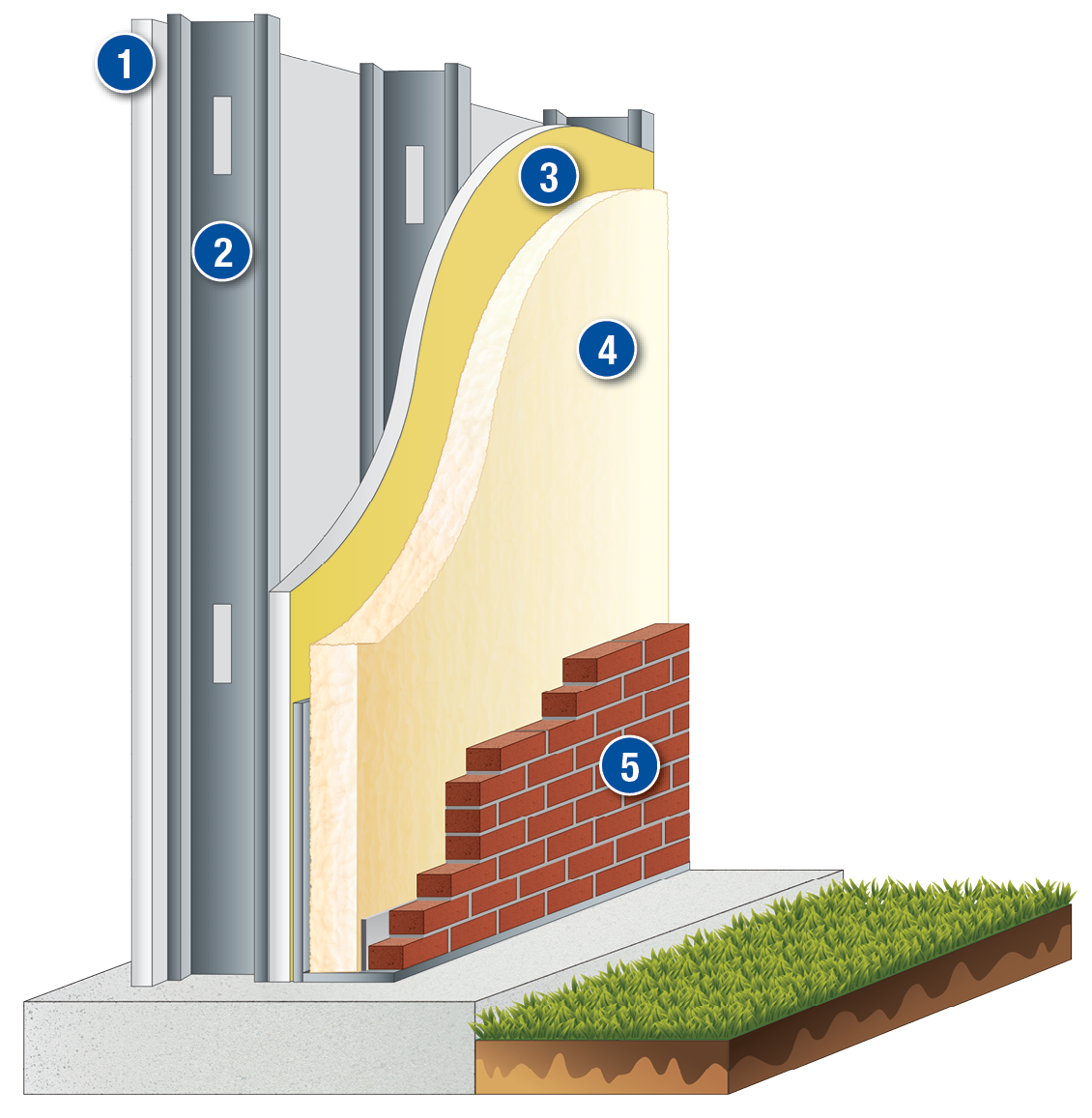

Closed Cell Spray Foam Insulation For Steel Framing
| CLOSED CELL SPRAY FOAM INSULATION FOR STEEL FRAMING |
|
|---|---|
| 1Gypsum Wallboard | $1.74 |
| 2Metal Stud and Track, 16″ O.C. | $3.18 |
| 3Gypsum Sheathing with Embedded Glass Mats | $1.94 |
| 43″ Closed Cell Spray Foam Insulation (R-21) | $2.89 |
| 5Brick Veneer | $24.00 |
| TOTAL PER SQUARE FOOT | $33.75 |

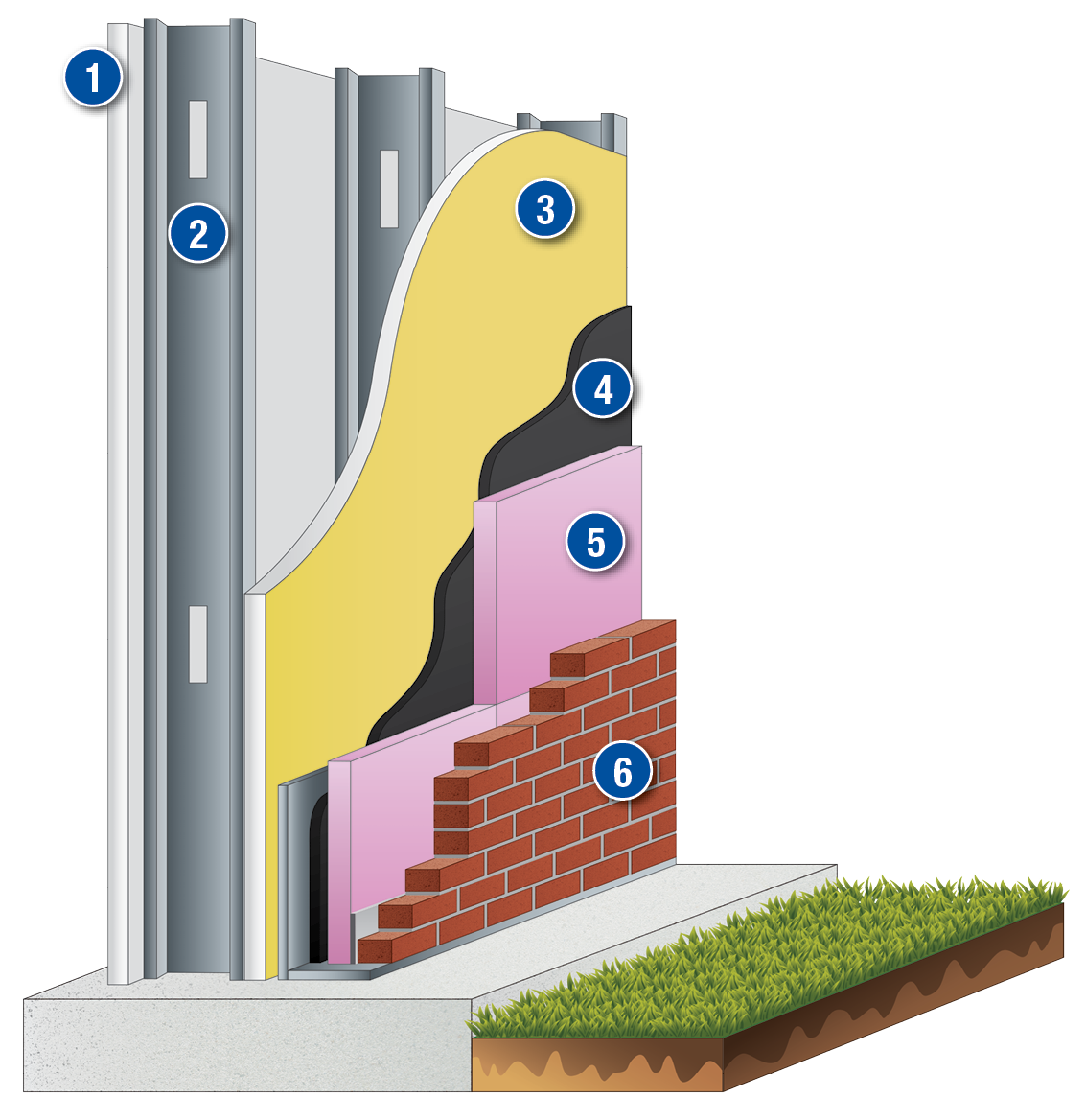

Rigid XPS Foam Board For Steel Framing
| RIGID XPS FOAM BOARD FOR STEEL FRAMING |
|
|---|---|
| 1Gypsum Wallboard | $1.74 |
| 2Metal Stud and Track, 16″ O.C. | $3.18 |
| 3Gypsum Sheathing with Embedded Glass Mats | $1.94 |
| 4Polyurethane and Rubberized Asphalt Sheet Barrier | $2.31 |
| 53″ Extruded Polystyrene Insulation (XPS) | $2.72 |
| 6Brick Veneer | $24.00 |
| TOTAL PER SQUARE FOOT | $35.89 |

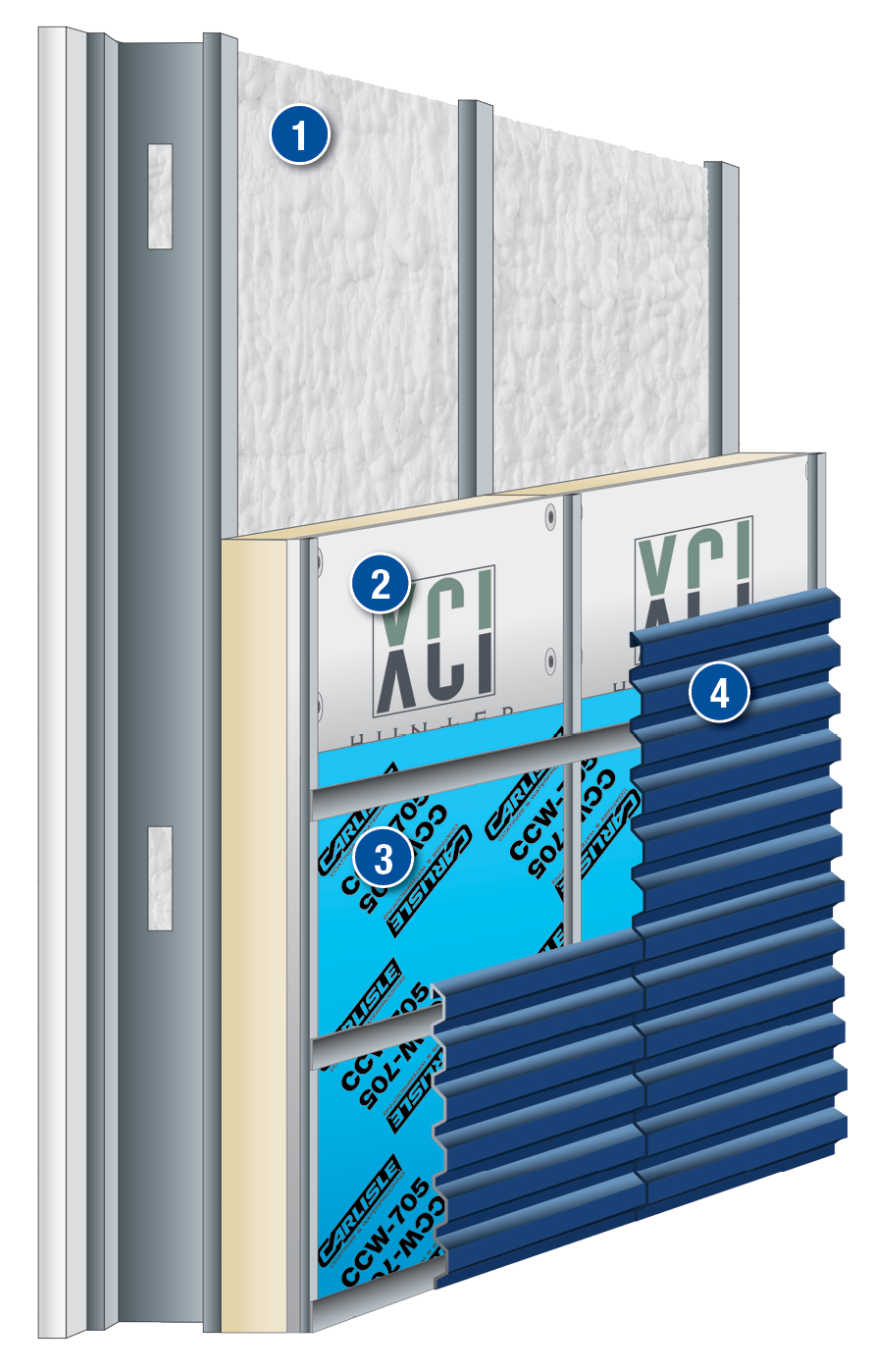

Systems Approach
Carlisle Spray Foam Insulation, as part of Carlisle Construction Materials, is the only spray foam manufacturer that provides everything needed to completely seal and protect the building envelop. Together with other CCM brands such as Hunter Panels, Insulfoam, CCW, and PAC-CLAD, CSFI offers designers the most flexibility and design options to create high performance building envelope solutions from a single source ensuring material compatibility and total system performance.
- SEALTITE PRO SPF:
Carlisle Spray Foam Insulation is committed to creating the highest quality spray polyurethane products for the spray foam professional. Every SealTite PRO formula is thoroughly tested for consistent performance and backed by the most accurate technical data sheet available. SealTite PRO is available in both Open Cell and Closed Cell to fit your project needs. - HUNTER PANELS XCI:
Hunter Panels Xci polyiso products meet the continuous insulation standards prescribed in the current ASHRAE and IECC report for commercial exterior wall applications and IBC Building Code Chapter 26. Products have been NFPA 285 tested with a wide assortment of wall assemblies. Huntern Panels Xci polyiso products provide continuous insulation (ci) for FRT wood frame, steel stud, CMU, and concrete exterior wall constructions. - CARLISLE COATINGS AND WATERPROOFING:
Air barriers are essential for a high-performing building envelope. They dramatically improve buildings’ energy efficiency and indoor comfort. CCW provides three types of air barriers: self-adhered sheet; fluid-applied; and fluid-applied, vapor permeable. For increased moisture protection, CCW also provides a variety of flashing products for use with air and vapor barrier systems. - PAC-CLAD ARCHITECTURAL METALS:
With a complete line of PAC-CLAD metal products including column covers, corrugated panels, metal composite panels, metal plate panels, and custom heavy-gauge fabrication, Petersen is dedicated to making projects run smoothly and cost-effectively. Petersen also offers the industry’s widest range of 45 colors, most of which feature outstanding SRI (Solar Reflectance Index) values for improved cooling and energy savings performance.
